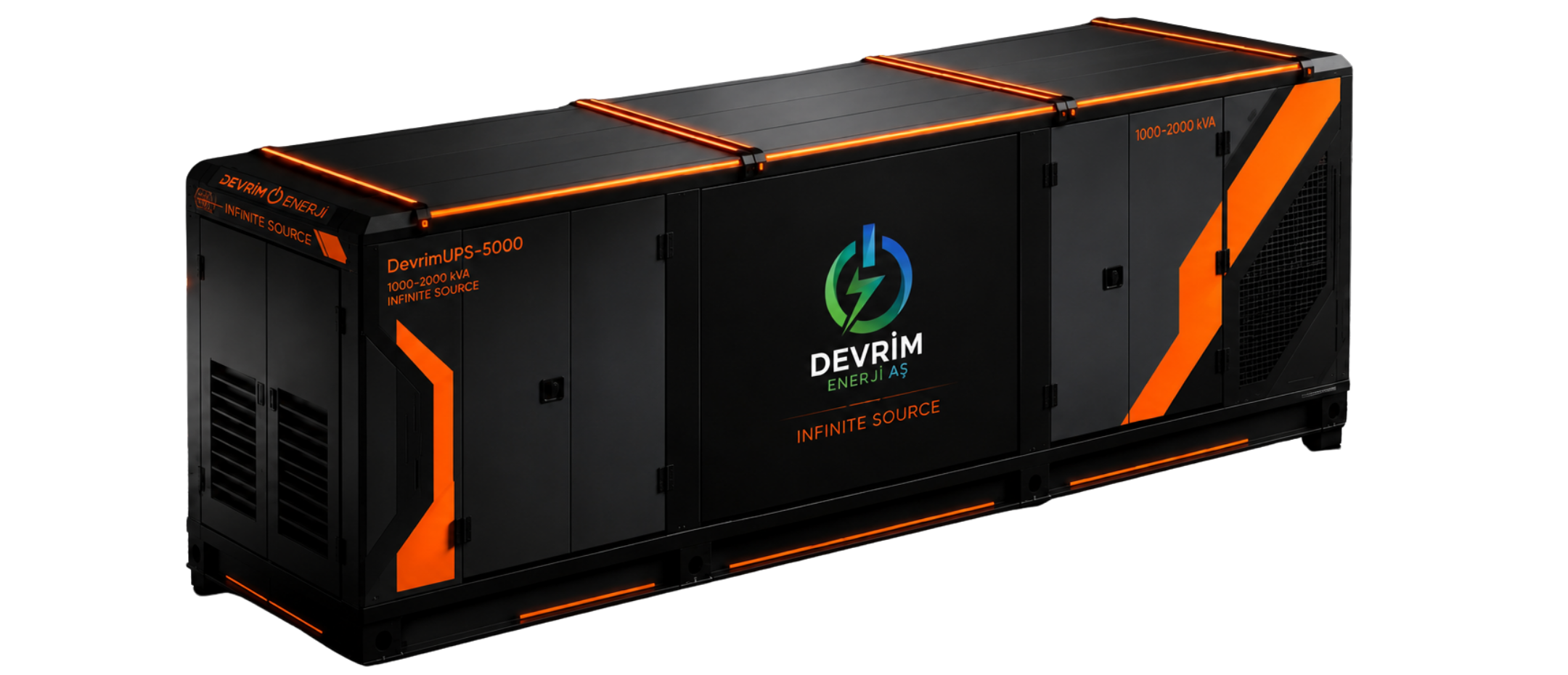

DevrimUPS-5000
A premium containerized continuous-power platform engineered for the most demanding environments — delivering uninterrupted energy from 1000 to 2000 kVA with industrial-grade durability.
DevrimUPS — Technical Details
DevrimUPS is a next-generation hybrid uninterrupted power platform that combines DC battery storage, an inverter-controlled electric drive, dual-flywheel kinetic energy storage and a synchronized alternator into a modular, high-efficiency, low-cost and rapidly deployable energy infrastructure. It is engineered for continuous industrial operation, high-load environments and long-term durability.
Five integrated engineering layers
Each layer contributes to continuous, stable and intelligently managed power production within a single platform.
DC Energy Storage Group
- High-capacity LFP battery banks
- Intelligent charge–discharge management
- Industrial-grade energy buffering
Inverter-Controlled Electric Drive
- Precision-controlled electric motor architecture
- Stable rotational synchronization
- Intelligent torque management
Dual-Flywheel Kinetic Storage
- High-inertia kinetic stabilization
- Energy balancing capability
- Reduced transient fluctuations
Synchronized Alternator
- Industrial-grade continuous AC production
- Frequency stabilization
- Multi-unit synchronization
Automation & Energy Management
- Intelligent operational control
- Remote monitoring & safety systems
- Automated operational balancing
Physical power-flow components
How energy moves through the platform — from the drive unit to a clean, AVR-stabilized output.
Drive Unit
Permanently mounted electric drive with flexible coupling and drive shaft.
Kinetic Storage
Dual-flywheel storage on precision bearings and housing.
Mechanical Transmission
Oil-lubricated gearbox transfers power from 3000 rpm to 1500 rpm with high efficiency.
Power Generation
AVR-equipped alternator delivering clean, stable output.
Storage & Control
Battery group + hybrid inverter with an automated controlled start system.
Model range: DVR-500 to DVR-5000
| Model | DVR-500 | DVR-750 | DVR-1000 | DVR-1500 | DVR-2000 | DVR-3000 | DVR-4000 | DVR-5000 |
|---|---|---|---|---|---|---|---|---|
| Apparent Power (kVA) | 635 | 940 | 1250 | 1875 | 2500 | 3750 | 5000 | 6250 |
| Active Power (kW), cosφ 0.8 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Energy Capacity (kWh) | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 |
| Frequency – Voltage | 50/60 Hz · 380/400V Phase + N + PE | |||||||
| Start Engine | Electric Starter · 380V – 3Ph · 50/60 Hz | |||||||
| First Initiation Period | ≤ 20 min (from cold start to full load) | |||||||
| Cooling System | Air-Cooled | |||||||
| Weight (kg) | 4600 | 6100 | 9000 | 9250 | 11000 | 15750 | 21000 | 21800 |
| Dimensions (L×W×H cm) | 500×200×180 | 600×200×180 | 600×200×180 | 700×200×190 | 700×200×200 | 800×250×240 | 900×270×220 | 1000×280×250 |
| Security System | Emergency Stop Button | |||||||
| Fire Suppression / Surveillance | Yes · 24/7 Camera System | |||||||
| Remote Mode | Manual Initiation | |||||||
| Sound Insulation | Yes – Standard | |||||||
Built for demanding, continuous operation
From a single unit to a 10,000 MW national platform
Synchronized modular architecture allows independent, parallel and redundant operation with incremental future expansion. A 200 MW deployment may consist of 40 synchronized 5 MW modules — scalable up to 10,000 MW.
40 synchronized 5 MW modules per 200 MW block.
Powered per 200 MW deployment.
For a 200 MW synchronized platform.
Current component production capacity.
Fast Initiation & Deployment
- Reaches full operational load within ≈ 20 minutes from cold start
- Containerized architecture for fast transportation
- Modular installation and rapid commissioning
- Emergency and rapid-deployment capability
Operational Capability
- Continuous, mission-critical power generation
- Independent, synchronized multi-unit and off-grid operation
- Load balancing, redundancy and national-grid integration
- Low — almost zero — long-term operational cost
